Description

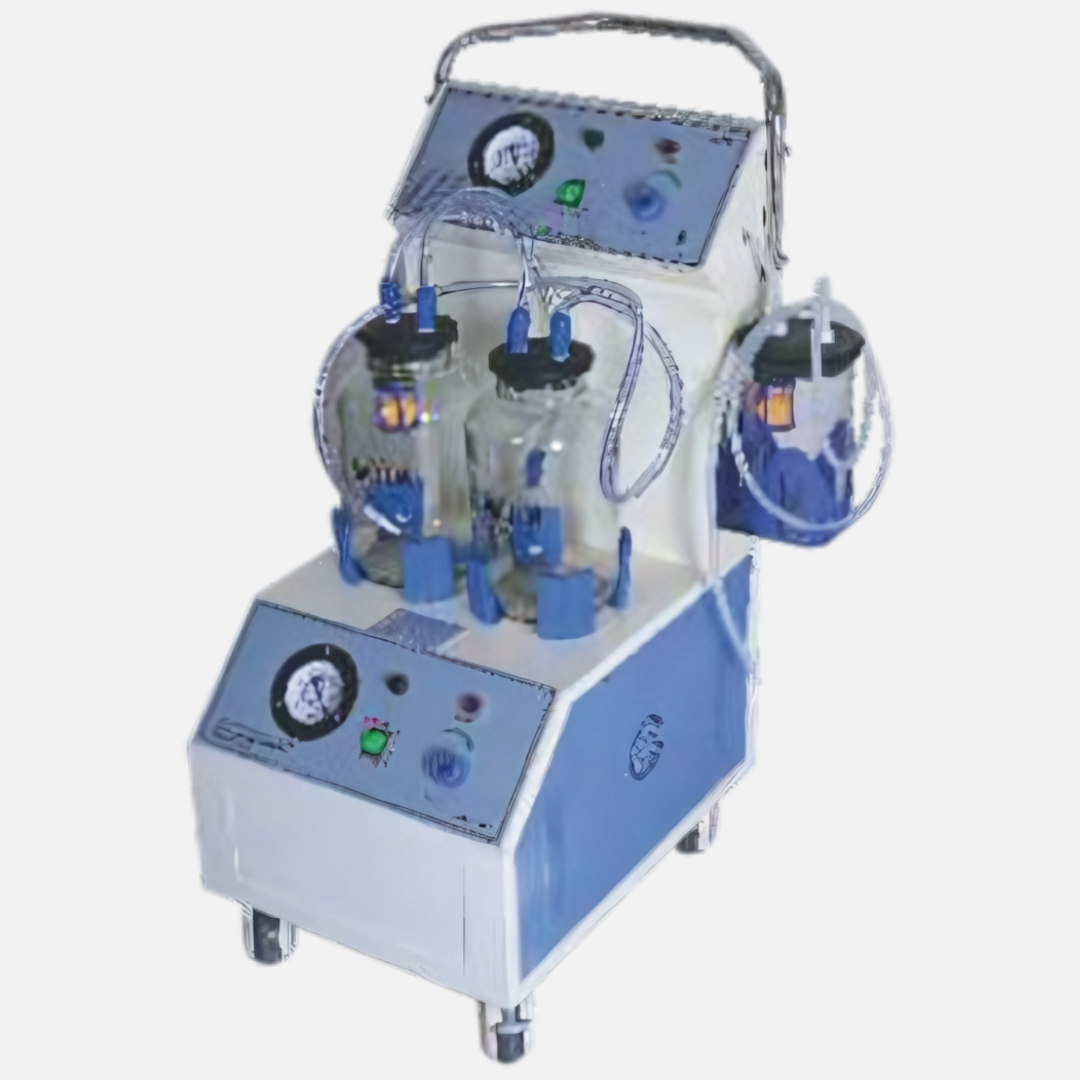

BSI-9218 High Vacuum Suction Unit provides strong and continuous suction for operation theatres, emergency rooms, and surgical centers. Bharat Surgical manufactures this model to meet high-performance medical requirements. As a trusted High Vacuum Suction Unit Manufacturer in Gurgaon, the company ensures durability, safety, and reliable vacuum output.
The main unit generates vacuum pressure up to -760 mmHg ±10. In addition, it delivers a powerful flow rate of approximately 70 liters per minute. Therefore, doctors can perform major surgical procedures without interruption. The double oil-immersed rotary vacuum pump ensures smooth performance and long service life.
The system includes two 3-liter graduated glass jars with rubber lids. Moreover, one bottle features an overflow cut-off device. As a result, the pump remains protected from fluid entry, which increases equipment lifespan.
Bharat Surgical constructs the body from strong M.S. sheet and finishes it with epoxy powder coating. Consequently, the surface resists corrosion and remains easy to maintain. The unit also includes a stainless steel push handle. Furthermore, it stands on four 75mm swivel castors, two equipped with brakes. Thus, medical staff can move and position it easily.
The control panel features a vacuum gauge (Bourdon type, 100mm diameter), ON/OFF switch with indicator, vacuum control knob, and bacterial filter. In addition, the side panel provides a D.C. outlet socket for connecting an optional foot pedal.
The unit operates on 220–240V, 50Hz A.C. mains. Optional upgrades include polycarbonate jars instead of glass, full stainless steel body construction, bacterial filter, foot pedal, and metal Yankauer suction cannula.
For facilities requiring an additional portable setup, a secondary foot pump configuration is available. This version provides -760 mmHg ±10 vacuum with approximately 20 Ltr/min flow rate and includes dual 1-liter polycarbonate jars.
BSI-9218 combines high vacuum power, durable construction, and advanced safety features. Therefore, it serves as an ideal solution for hospitals that demand dependable surgical suction equipment.
Technical Specifications (Main Unit)
- Vacuum Capacity: -760 mmHg ±10
- Flow Rate: Approx. 70 Ltr./Min
- Pump Type: Double Oil Immersed Rotary Vacuum Pump
- Jars: 2 x 3.0 Ltr Graduated Glass with Rubber Lids
- Vacuum Gauge: Bourdon Type, 100mm Dia (0-760 mmHg / 0-30 inHg)
- Body: M.S. Epoxy Powder Coated
- Handle: Stainless Steel Push Handle
- Castors: 4 Swivel (75mm), 2 with Brakes
- Power Supply: 220-240V, 50Hz A.C.
