Description

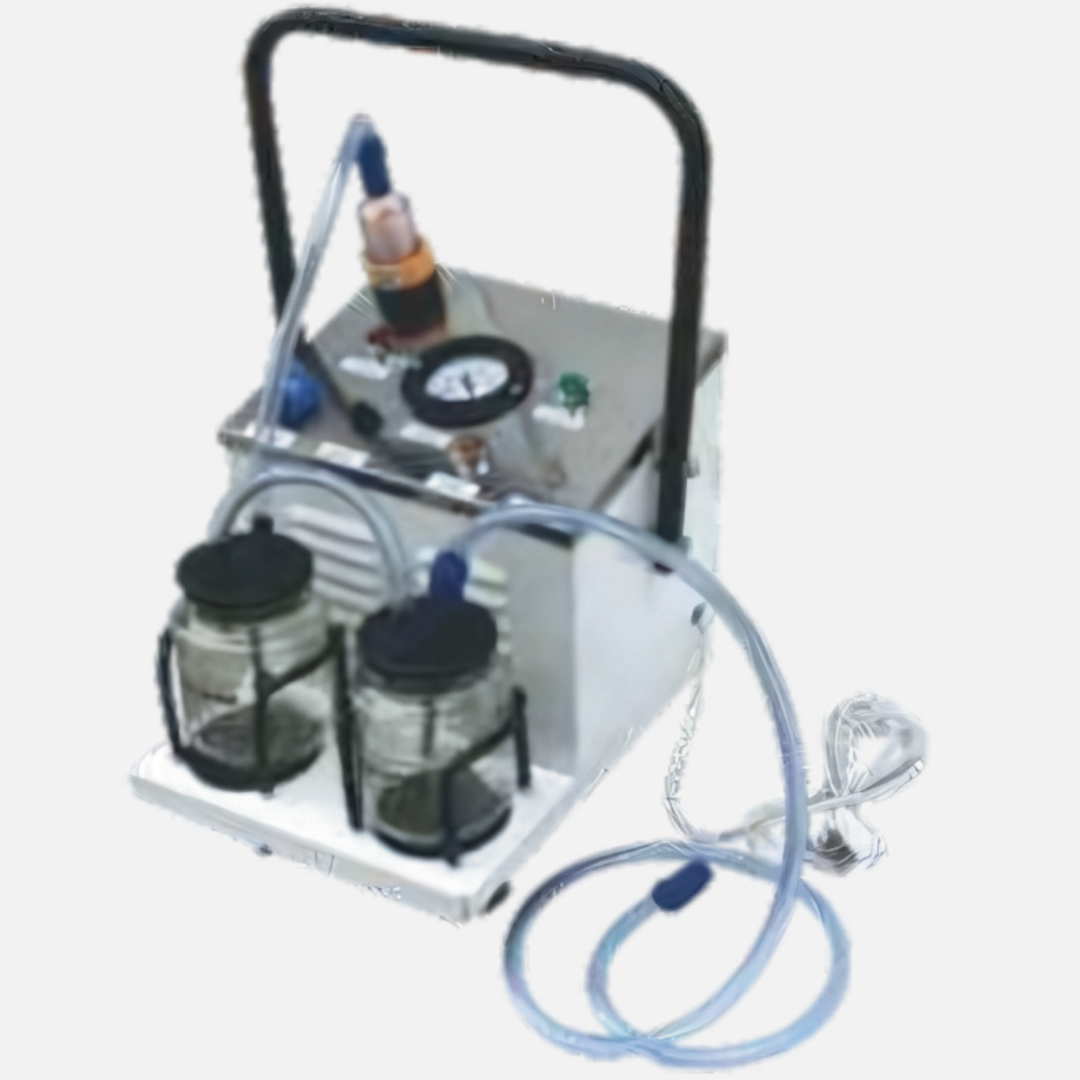

BSI-9216 Electric Vacuum Extractor – Economy Model is a practical and affordable solution for obstetric procedures. Bharat Surgical designs this model to deliver reliable suction performance while keeping operation simple. As a trusted Electric Vacuum Extractor Manufacturer in Gurgaon, the company focuses on safety, durability, and ease of use.
This model generates vacuum pressure up to -600 mmHg ±10. In addition, it provides a flow rate of approximately 15 to 18 liters per minute. Therefore, it is suitable for controlled and low vacuum medical procedures. The system uses a durable piston pump, which ensures steady suction and low maintenance.
The unit includes two 1-liter graduated glass jars with rubber lids. Moreover, one bottle features an overflow cut-off device that prevents fluid from entering the pump. As a result, the equipment remains protected and performs efficiently for a longer period.
The body is constructed from strong M.S. sheet and finished with epoxy powder coating. Consequently, it resists corrosion and is easy to clean. The unit is mounted on four swivel castors and fitted with a push handle. Thus, hospital staff can move it easily between rooms.
The control panel is user-friendly. It includes a bacterial filter, Bourdon-type vacuum gauge (0–760 mmHg & 0–30 in Hg), ON/OFF switch with indicator, and vacuum control knob. Hence, doctors can monitor and adjust suction levels accurately during procedures.
The unit operates on 220–240V, 50Hz AC mains power. It comes supplied with suction tubing, plastic cannula, plastic tip, and electric lead. Additionally, silicone suction cups in 50mm, 60mm, and 70mm diameters are available at extra cost. A foot pedal can also be added upon request.
BSI-9216 Electric Vacuum Extractor Economy combines performance, affordability, and safety—making it ideal for maternity centers and hospitals.
Technical Specifications
- Vacuum Capacity: -600 mmHg ±10
- Flow Rate: 15–18 Liters/Minute
- Pump Type: Piston Pump
- Jars: 2 x 1 Liter Graduated Glass Bottles
- Vacuum Gauge: Bourdon Type (0–760 mmHg & 0–30 in Hg)
- Power Supply: 220–240V, 50Hz AC
- Body: M.S. Epoxy Powder Coated
- Mobility: 4 Swivel Castors with Push Handle
