Dual Suction Unit

Description

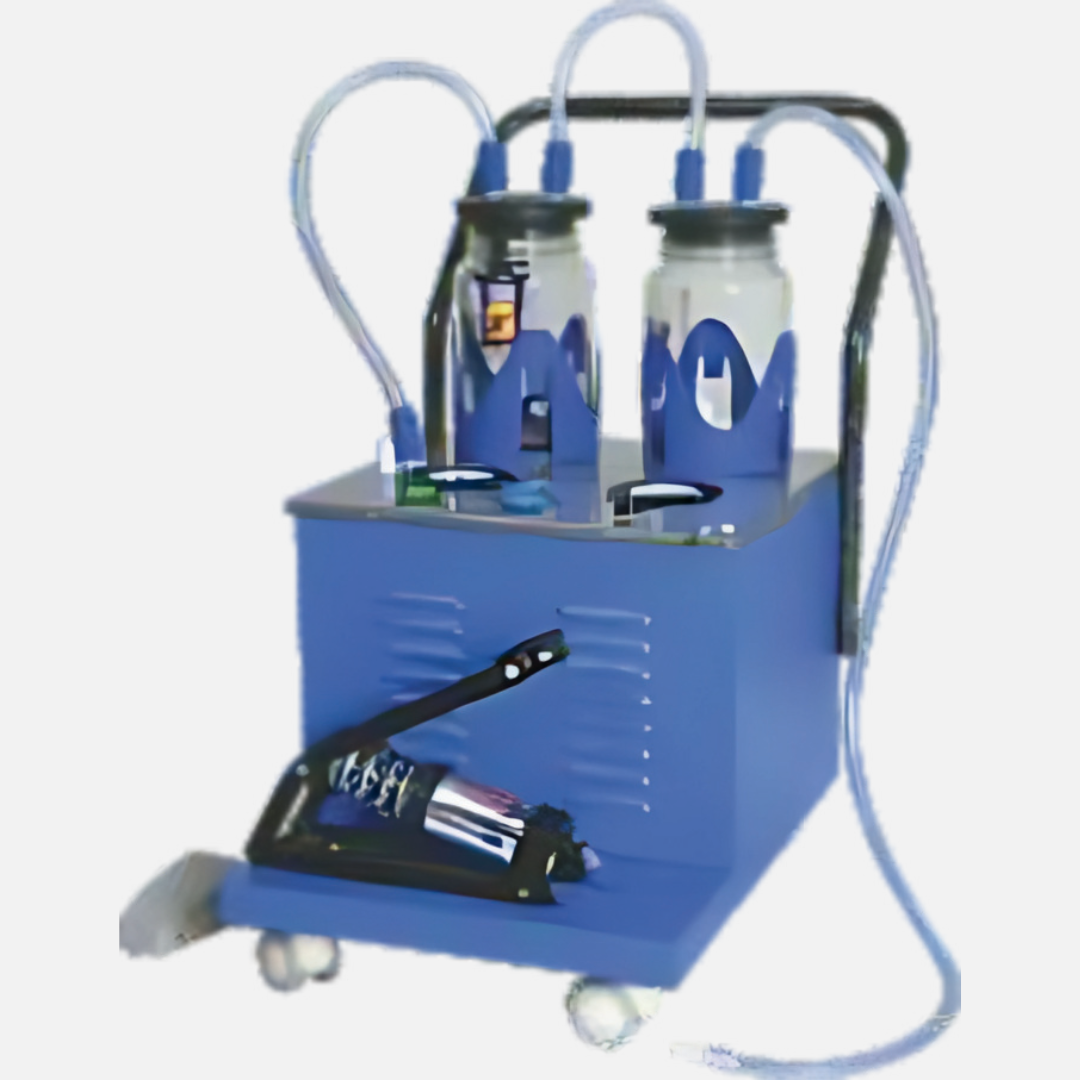

BSI-9214 Suction Dual Unit is a powerful and reliable general-purpose suction apparatus designed for hospitals, operation theatres, and emergency medical environments. Manufactured by Bharat Surgical, a leading Dual Suction Unit Manufacturer in Gurgaon, this model is engineered to provide enhanced vacuum stability and dependable performance during critical medical procedures.

This suction unit is mounted on four smooth swivel castors and fitted with a sturdy push handle, allowing easy mobility within hospital premises. The body is constructed from durable M.S. sheet and finished with epoxy powder coating to ensure corrosion resistance and long-term durability.

The BSI-9214 features a double oil-immersed vacuum pump system that delivers consistent suction performance with a vacuum capacity of up to -760 mmHg ±10 and an approximate flow rate of 22–25 liters per minute. The presence of two Bourdon-type vacuum gauges (0–760 mmHg & 0–30 in Hg) enables precise monitoring of suction pressure for enhanced procedural control.

Equipped with two 1.5-liter graduated glass jars with rubber lids, the unit ensures safe and hygienic fluid collection. One bottle is fitted with an overflow cut-off device to prevent fluid entry into the pump, protecting internal components and extending equipment life. The control panel includes a bacterial filter, ON/OFF switch with indicator, and vacuum control knob for accurate suction adjustment.

A D.C. outlet socket is provided for optional foot pedal connection (foot pedal not included). The unit is supplied with suction tubing, plastic cannula, plastic tip, and electric lead for immediate use. It operates on 220–240V, 50Hz AC mains supply.

Optional accessories such as polycarbonate jars, foot pedal, and metal Yankauer suction cannula are available at extra cost.

BSI-9214 Dual Suction Unit combines double pump reliability, enhanced monitoring, and hospital-grade durability—making it an essential solution for modern surgical and clinical applications.

Technical Specifications

• Vacuum Capacity: -760 mmHg ±10
• Flow Rate: 22–25 Liters/Minute
• Pump Type: Double Oil Immersed Vacuum Pump
• Jars: 2 x 1.5 Liter Graduated Glass Bottles
• Vacuum Gauges: Two Bourdon Type (0–760 mmHg & 0–30 in Hg)
• Foot Pump: Heavy Duty Aluminium
• Body: M.S. Epoxy Powder Coated
• Power Supply: 220–240V, 50Hz AC
• Mobility: 4 Swivel Castors with Push Handle
